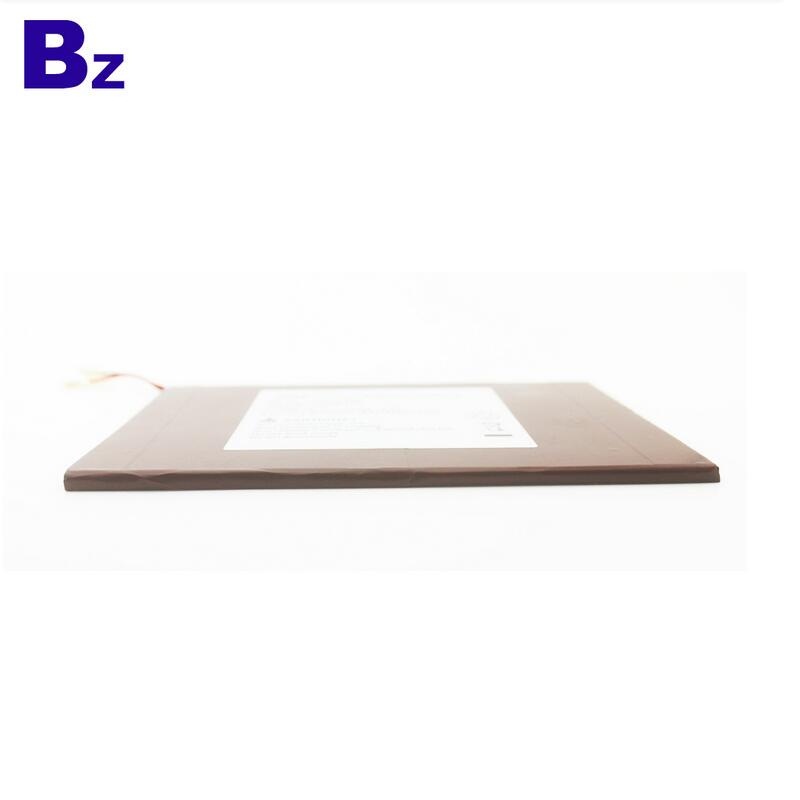

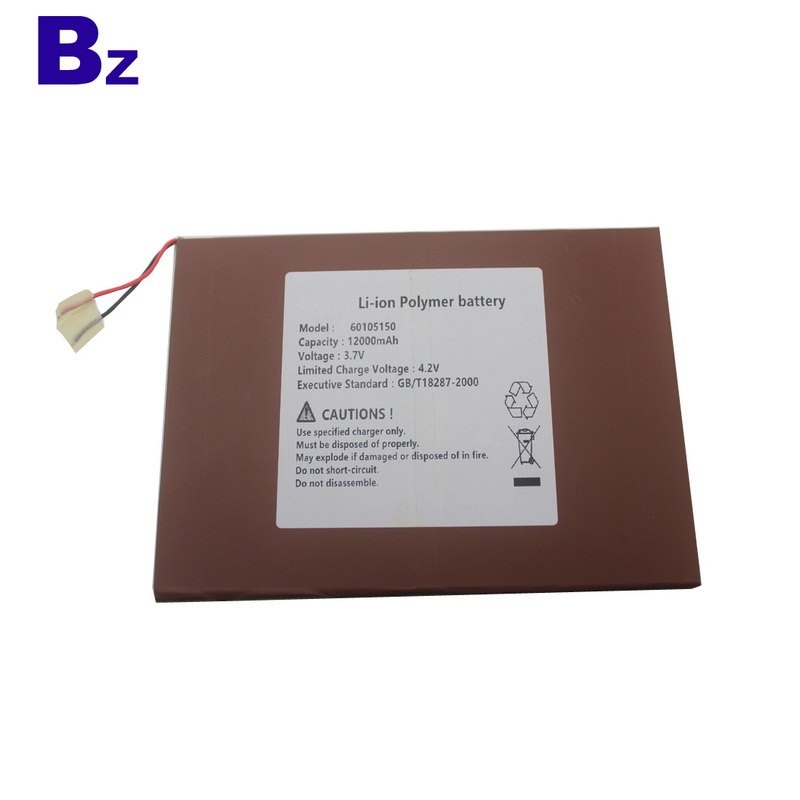

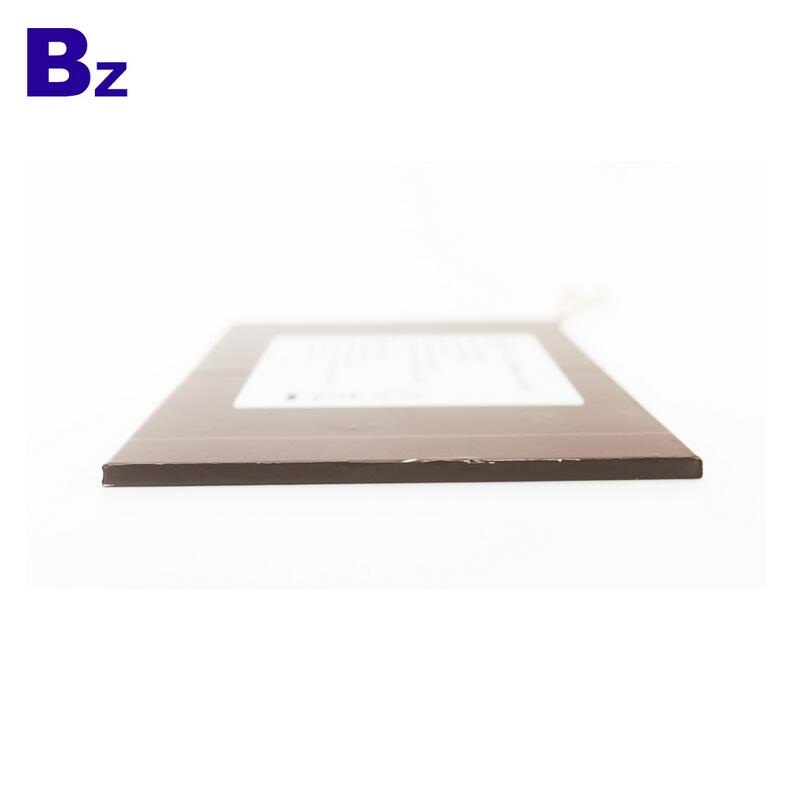

소비자 전자 제품을위한 도매 MID 건전지 BZ 60105150 12000mAh 3.7V Lipo 배터리
$13.80
In stock
SKU
BZ 60105150 12000mAh 3.7V
FOB 가격 : US $ 1.2-1.5 / 암페어
최소 주문 수량 : 1000 Ampere
주문 문의하시기 바랍니다!
원산지 : 중국 광동
유명 상표 : BZ
모델 번호 : 60105150
유형 : 리튬 폴리머
명목상 전압 : 3.7V
크기 : 6 * 105 * 152mm
공칭 용량 : 12000mAh
용량 : 12000mAh
전압 : 3.7V
사이클 수명 : 500 회
신청 : MID 배터리
무게 : 320g
보증 : 1 년
배터리 유형 : 리튬 폴리머
표준 충전 : 0.2C / 0.5C / 1C
인증 : CE / RoHS / UN38.3 / MSDS
지불 : Paypal.TT.Escrow.Western Union
Product Parameters
| No. | Item | General Parameter | Remark | |
| 1 | Rated Capacity | Typical | 12100mAh | Standard discharge(0.2C C5A) after Standard charge |
| Minimum | 12000mAh | |||
| 2 | Nominal Voltage | 3.7V | Mean Operation Voltage | |
| 3 | Voltage at end of | 3.0V | Discharge Cut-off Voltage | |
| Discharge | ||||
| 4 | Charging Voltage | 4.2±0.03V | ||
| 5 | Internal Impedance | ≤30mΩ | Internal resistance measured at AC 1KHZ after 50% charge | |
| The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times | ||||
| 6 | Standard charge | Constant Current 0.2C5A | Charge time : Approx 6h | |
| Constant Voltage 4.2V | ||||
| 0.01 C5A cut-off | ||||
| 7 | Standard discharge | Constant current 0.2 C5A | ||
| end voltage 3.0V | ||||
| 8 | Fast charge | Constant Current 0.5C5A | Charge time : Approx 2.5h | |
| Constant Voltage 4.2V | ||||
| 0.01 C5A cut-off | ||||
| 9 | Fast discharge | Constant current 0.5C5A | ||
| end voltage 3.0V | ||||
| 10 | Maximum Continuous Charge Current | 1 C5A | ||
| 11 | Maximum Continuous Discharge Current | 1C5A | ||
| 12 | Operation Temperature Range | Charge: 0~45℃ | 60±25%R.H. | |
| Bare Cell | ||||
| Discharge: -20~60℃ | ||||
| 13 | Storage Temperature Range | Less than 1 year: -20~25℃ | 60±25%R.H. | |
| less than 3 months: -20~40℃ | at the shipment state | |||
| 14 | Pack Dimension |
High:.max6.1mm Width: max105mm Thickness: max152mm |
Initial Dimension | |
