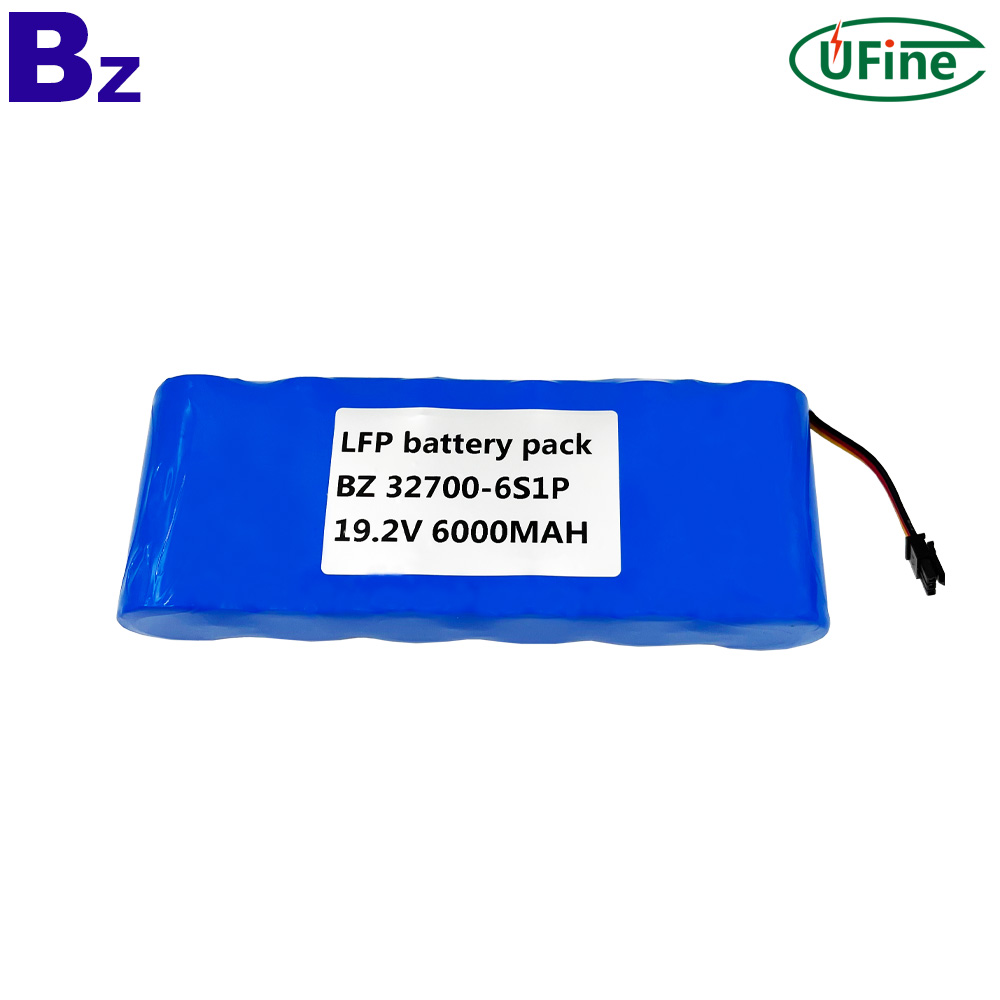

중국 최고의 원통형 배터리 BZ 32700-6S1P 6000mAh 19.2V LFP 충전식 배터리 팩
가격 : US $ 1.2-1.5 / 암페어
Min. 주문 : 2,000 암페어
주문 하시려면 저희에게 문의하십시오!
- 브랜드명: BZ
모델 번호: 32700-6S1P
유형: 리튬 폴리머
공칭 전압: 19.2V
크기: 34*75*198mm
공칭 용량: 6000mAh
제품명: 32700-6S1P 리튬 이온 배터리
보증: 1년
무게: 856g
사이클 수명: 500회
용량: 6000mAh
전압: 19.2V
용도: 모니터링 장치
인증: RoHS/MSDS
결제: Paypal, TT, 에스크로, Western Union
최대 충전 전류: 1C
Product Parameters
|
No. |
Item |
General Parameter |
Remark |
|
|
1 |
Rated Capacity |
Typical |
6000mAh |
Standard discharge(0.2C C5A) after Standard charge |
|
Minimum |
6000mAh |
|||
|
2 |
Nominal Voltage |
19.2V |
Mean Operation Voltage |
|
|
3 |
Voltage at end of |
12.0V |
Discharge Cut-off Voltage |
|
|
Discharge |
||||
|
4 |
Charging Voltage |
21.9±0.03V |
||
|
5 |
Internal Impedance |
≤175mΩ |
Internal resistance measured at AC 1KHZ after 50% charge |
|
|
The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times |
||||
|
6 |
Standard charge |
Constant Current 0.2C5A |
Charge time : Approx 6h |
|
|
Constant Voltage 19.2V |
||||
|
0.01 C5A cut-off |
||||
|
7 |
Standard discharge |
Constant current 0.2 C5A |
||
|
end voltage 12.0V |
||||
|
8 |
Fast charge |
Constant Current 0.5C5A |
Charge time : Approx 2.5h |
|
|
Constant Voltage 19.2V |
||||
|
0.01 C5A cut-off |
||||
|
9 |
Fast discharge |
Constant current 0.5C5A |
||
|
end voltage 12.0V |
||||
|
10 |
Maximum Continuous Charge Current |
1 C5A |
||
|
11 |
Maximum Continuous Discharge Current |
1 C5A |
||
|
12 |
Operation Temperature Range |
Charge: 0~45℃ |
60±25%R.H. |
|
|
Bare Cell |
||||
|
Discharge: -20~60℃ |
||||
|
13 |
Storage Temperature Range |
Less than 1 year: -20~25℃ |
60±25%R.H. |
|
|
less than 3 months: -20~40℃ |
at the shipment state |
|||
|
14 |
Pack Dimension |
High: max198mm Width: max75mm |
Initial Dimension |
|
